PEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe
  • PEX-AL-PEX Multilayer PipePEX-AL-PEX Multilayer Pipe

PEX-AL-PEX Multilayer Pipe

ASTM F 1281 Standard / EN ISO21003 Standard PEX-AL-PEX multilayer pipe for water plumbing & heating, sized from 16mm-32mm, approved by CE certificate, suitable for working at Tmax.95℃ & PN1.0Mpa. Good quality warranted with 15 years, Competitive wholesale price, Prompt delivery available. Contact us for more details of PEX-AL-PEX pipe!!!

Model:SP-2002

Send Inquiry    PDF DownLoad

Product Description

PEX-AL-PEX Multilayer Pipe/Tubing For Water Plumbing & HeatingPEX-AL-PEX

PEX-AL-PEX multilayer pipe, known as MLCP pipe (multilayer composite pipe), which is a innovation of single PEX pipe.



The PEX-AL-PEX multilayer pipe has a five-layers' structure: the PEX-b (cross-linking polyethylene) in inner & outer layers ensures the pipe can be used for hot water (the max. working temperature reaches to 95℃).  The aluminum core layer in middle greatly strengthen the pipe’s intensity (The PEX-AL-PEX multilayer pipe can bear much higher working pressure than single PEX pipe, whose max. working pressure can reach to PN1.0Mpa), at the same time, it can reliably prevents oxygen/gases from permeating into the pipe, which can protect the steel/brass accessories from rusting for long time use. The two layers of adhesive between PEX & aluminum layers ensure the pipes’ entirety & reliability.



The PEX-AL-PEX multilayer pipe combines all advantages of a metal and plastic pipe. The superior performance makes PEX-AL-PEX multilayer pipe be the best choice for hot water plumbing & underfloor heating systems.

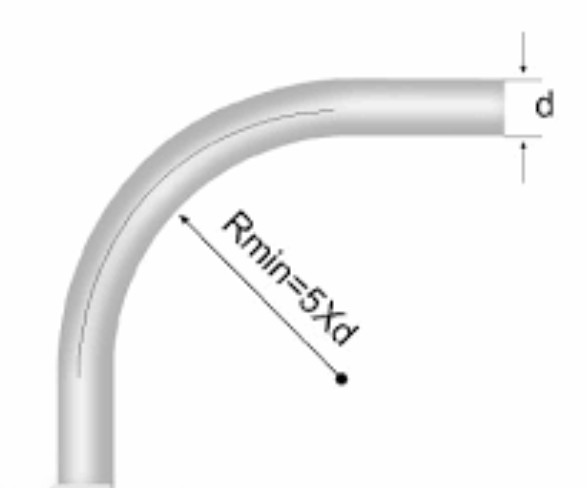

※ Flexible and easy to install PEX-AL-PEX Multilayer Pipe Bending

The PEX-AL-PEX multilayer pipe is flexible, with min. bend radio 5 times of pipe outer dia. The pipe can be installed easily, no welding, only very simple tools required.
※ Good performance for high temperature
The PEX-AL-PEX multilayer pipe are stable for use for high temperature, with max. working temperature 95for 50 years.
※ Oxygen barrier pipe
The aluminum core layer can reliably prevents oxygen/gases from permeating into the pipe, this will protect the brass parts from rusting
※ Health & suitable for drinkable water supply.
The PEX-AL-PEX multilayer pipe is hygienically and neutral in material, even in case of high PH-value fluctuation of the tap water.
※ corrosion free
PEX-b is kind of inert material, it is stable against solvents and other chemicals

Product name

PEX-AL-PEX multilayer pipe

Sizes available

12×1.5mm, 16×2.0mm, 20×2.0mm, 25×2.5mm, 26×3.0mm, 32×3.0mm

Max. working pressure rating

PN10 bars  (PN12.5 bars for laser weld pipe)

Max. Working temperature

95℃

Material

Inner & outer layer are PEX-b, Middle layer is Aluminum, Adhesive between PEX & Aluminum

Aluminum welding method

Overlap welded by ultrasonic, or butt laser welded by argon-arc

Colors available

Regular customer is white, red & yellow or as per request.

Standards follow to

ASTM F 1281, EN ISO21003, DIN8077/8078

Markings on the pipe

OEM or as per request.

Samples available

Yes

Packing method

Be in coils with 50m/100/200m/300/500m, each coil in carton or  brown paper.

MOQ

Negotiable

Production lead time

About 10-15 days for a 20ft container, 15-20 days for a 40ft container.

Warranty time

15 years for normal using

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Zhejiang, China


Product Specifications
SUNPLAST PEX-AL-PEX multilayer pipe can be provided in various sizes as below:

Specification

Outer Dia.

Inner Dia.

Wall Thick

Alu. Thick

Coil Length

(mm)

(inch)

(mm)

(mm)

(mm)

(mm)

(m/coil)

12×1.5

3/8"

12

9

1.5

0.15~0.20

50/100/200/300/500

16×2.0

1/2"

16

12

2.0

0.16~0.20

50/100/200/300/500

20×2.0

5/8"

20

16

2.0

0.20~0.25

50/100/200

25×2.5

3/4"

25

20

2.5

0.25~0.30

50/100

26×3.0

3/4"

26

20

3.0

0.25~0.30

50/100

32×3.0

1"

32

26

3.0

0.25~0.30

50/100

Download catalogue: PEX-AL-PEX Multilayer Pipe System

Technical Index

SUNPLAST PEX-AL-PEX multilayer pipe are made into GB/T 18997 standard, at the same time, it can conforms to EN ISO21003 standard in Europe & ASTM F 1281/1282 standard in the USA. The technical index of PEX-AL-PEX multilayer pipe as below:

Item
Technical Index
Blasting Strength

12mm pipe≥7Mpa

16mm pipe≥6Mpa

20mm pipe≥5Mpa

25mm/26mm/32mm pipe≥4Mpa

Pipe Rings Strength

12mm pipe≥2100N

16mm pipe≥2300N

20mm/25mm/26mm pipe≥2500N

32mm pipe≥2650N

Sustained Pressure
At 82℃ temperature & 2.72Mpa testing pressure for 10 hours, no break.
Thermal Conductivity
0.45 W/(mk)
Coefficient of thermal expansion
0.025 mm/(mk)
Bending Radius
≥5D (D=Pipe Outer Dia.)


Fittings & Installation ToolsPEX-AL-PEX Pipe Fittings

SUNPLAST is a integated provider of PEX-AL-PEX multilayer pipe systems. To support the connection of PEX-AL-PEX multilayer pipe, SUNPLAST is also able to provide complete range of brass fittings & installation tools, see below:

※ 16-32mm brass compression fittings
※ 16-32mm brass press fittings
 Installation tools, such as press tool, cutter, reamer, bending spring., etc


Shiment & Delivery
Due to superior quality & best factory prices, we have been building strong & close business relationship with the customers abroad. Till now, SUNPLAST PEX-AL-PEX multilayer pipe has been serviced to more than 30 countries, with major of our customers are from Europe & the USA. All our customers are satisfied about our service.


SUNPLAST PEX-AL-PEX multilayer pipe has been the first choice for our customers.

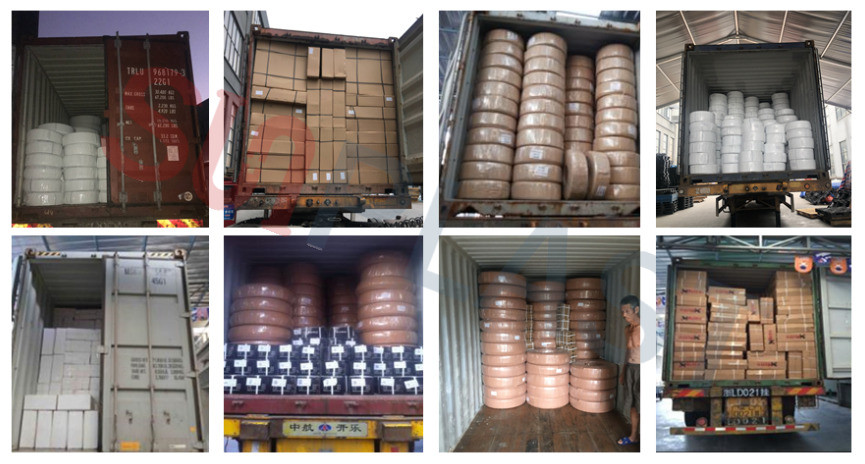

PEX-AL-PEX Multilayer Pipe Loading
