PEX-AL-PEX Pipe

ASTM F 1281 Standard / EN ISO21003 Standard PEX-AL-PEX multilayer pipe for water plumbing & heating, sized from 16mm-32mm, approved by CE certificate, suitable for working at Tmax.95℃ & PN1.0Mpa. Good quality warranted with 15 years, Competitive wholesale price, Prompt delivery available. Contact us for more details of PEX-AL-PEX pipe!!!

Model:SP-2002

Send Inquiry PDF DownLoad

Product Description

PEX-AL-PEX Multilayer Pipe/Tubing For Water Plumbing & Heating

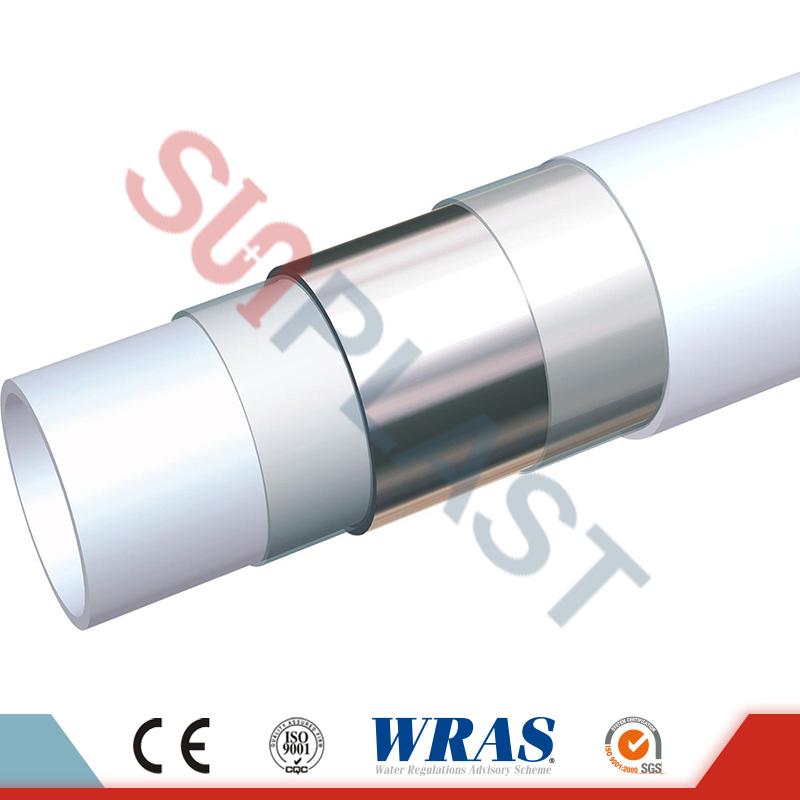

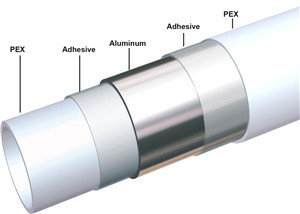

PEX-AL-PEX multilayer pipe, known as MCLP pipe (multilayer composite pipe), consists five-layer' structure. The inner & outer layers are made by PEX-b material, the middle layer is aluminum core which is welded by butt laser welded method or overlap welded method. Between the PEX material & aluminum core, special adhesive is used.

SUNPLAST PEX-AL-PEX multilayer pipe combines the advantages of a metal and plastic pipe, the superior performance makes PEX-AL-PEX multilayer pipe to be the best choice for water plumbing & underfloor heating systems.
※ Flexible and easy to install
※ Good performance for high temperature
The PEX-AL-PEX multilayer pipe can be used at T-max. 95℃ for 50 years.
※ Oxygen barrier pipe
The aluminum core layer can reliably prevents oxygen/gases from permeating into the pipe, this will protect the brass parts from rusting
※ Health & suitable for drinkable water supply.
They are hygienically and neutral in material, even in case of high PH-value fluctuation of the tap water.
※ corrosion free
PEX-b is kind of inert material, it is stable against solvents and other chemicals

Product name	PEX-AL-PEX multilayer pipe
Sizes available	12×1.5mm, 16×2.0mm, 20×2.0mm, 25×2.5mm, 26×3.0mm, 32×3.0mm
Max. pressure rating	PN10 bars (PN12.5 bars for laser weld pipe)
Max. Working temperature	95℃
Material used	Inner & outer layer are PEX-b, Middle layer is Aluminum core
Aluminum welding method	Overlap welded by ultrasonic, or butt laser welded by argon-arc

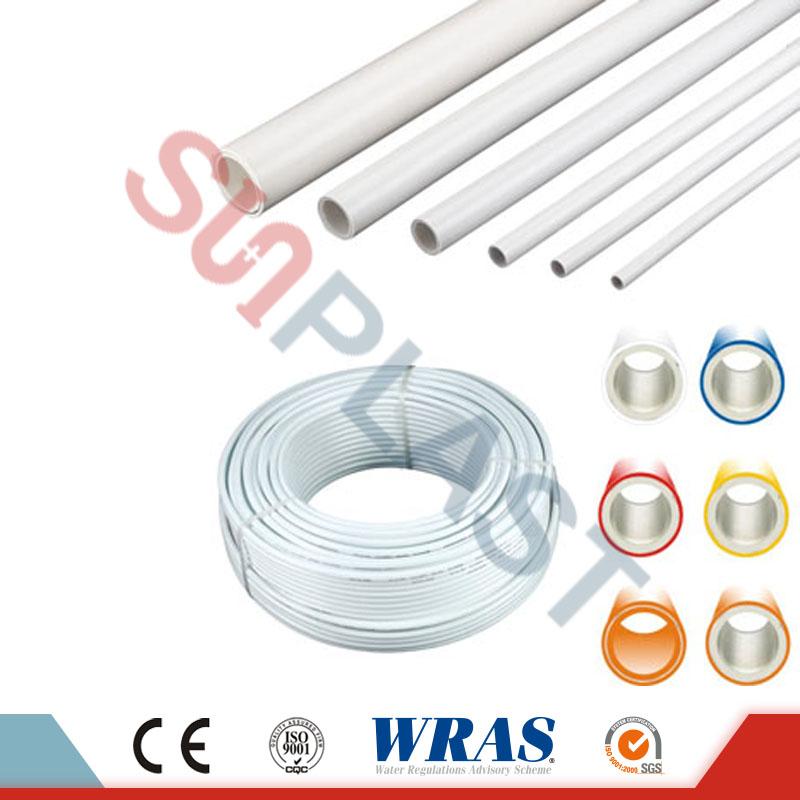

Colors available	Regular customer is white, red / yellow or other color available
Standards follow to	ASTM F 1281, EN ISO21003, DIN8077/8078
Markings on the pipe	Customer's logo can be stamped
Samples available	Yes, sample available for small quantity.

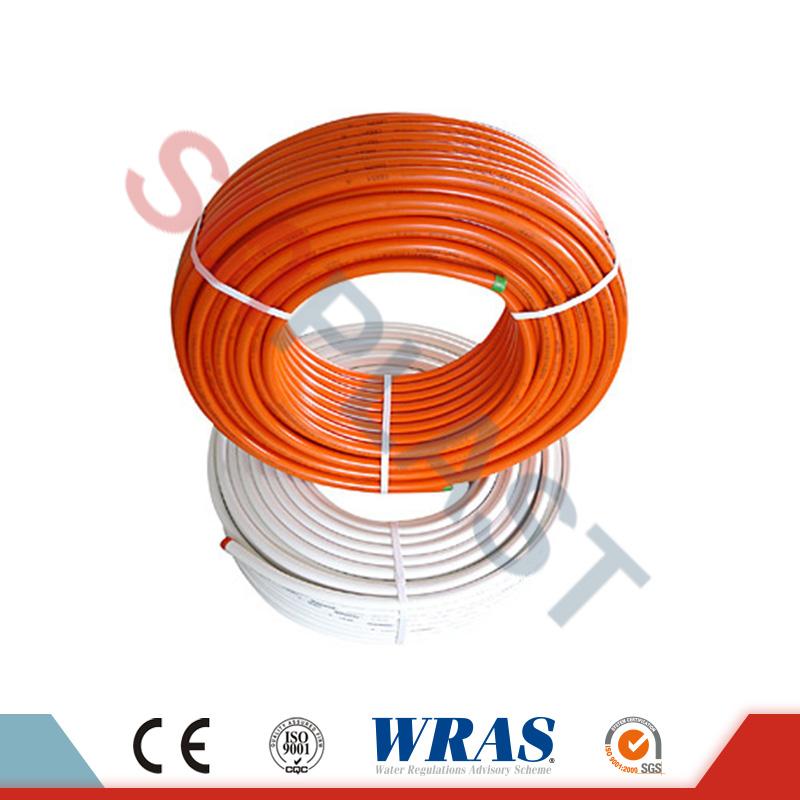

Packing method	To be packed in coils with 50m/100m/200m/500m length, each roll in cartons or PP bags.
MOQ	Negotiable
Production lead time	About 7-10 days for a 20ft container, 15-20 days for a 40ft container.
Warranty time	15 years for normal using
Payment term	T/T or LC at sight
FOB loading port	Ningbo or Shanghai China
Place of origin	Zhejiang, China

Product Specifications
SUNPLAST PEX-AL-PEX multilayer pipe can be provide from 12-32mm (outer diameter):

Specification		Outer Dia.	Inner Dia.	Wall Thick	Alu. Thick	Coil Length
(mm)	(inch)	(mm)	(mm)	(mm)	(mm)	(m/coil)
12×1.5	3/8"	12	9	1.5	0.20	50/100/200/300/500
16×2.0	1/2"	16	12	2.0	0.20	50/100/200
20×2.0	5/8"	20	16	2.0	0.25	50/100/200
25×2.5	3/4"	25	20	2.5	0.25	50/100
26×3.0	3/4"	26	20	3.0	0.30	50/100
32×3.0	1"	32	26	3.0	0.30	50/100

Fittings & Installation Tools

To support the connection of PEX-AL-PEX pipe, SUNPLAST is available to provide complete range of brass fittings & installation tools:

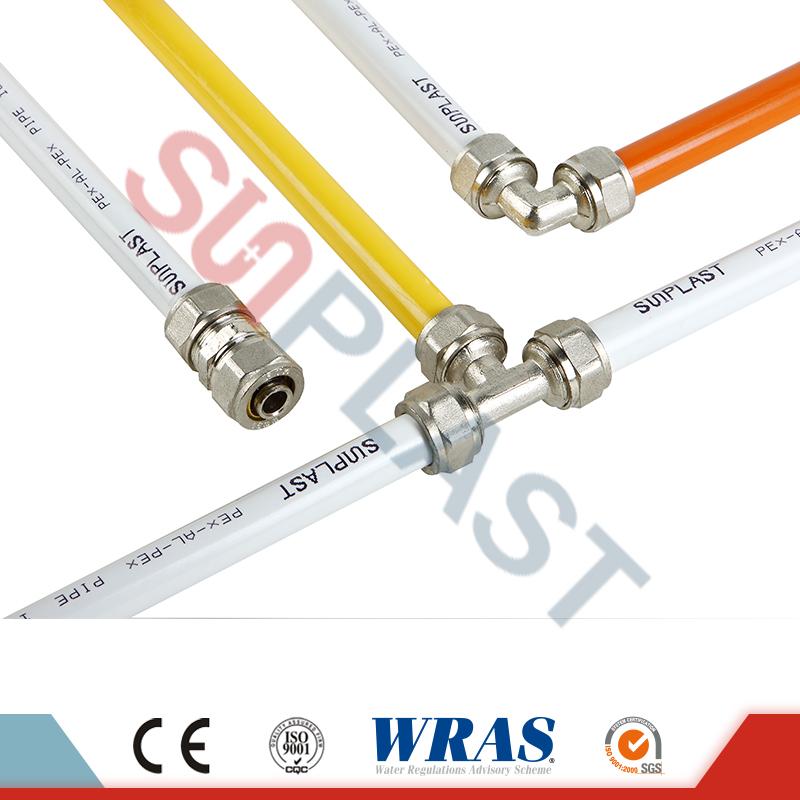

※ 16-32mm brass compression fittings

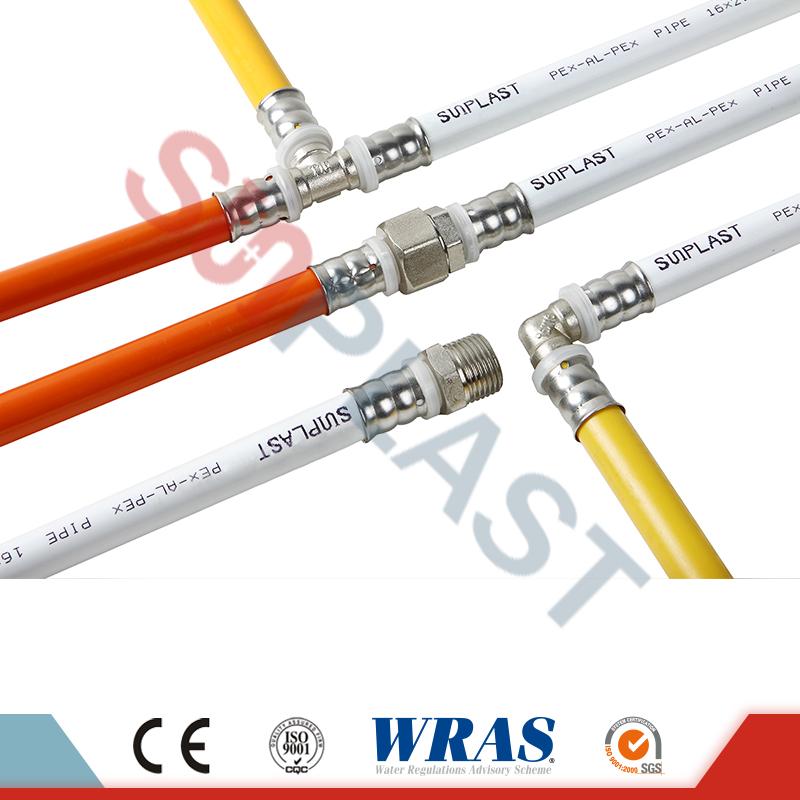

※ 16-32mm brass press fittings
※ Installation tools, such as press tool, cutter, reamer, bending spring., etc

Shiment
SUNPLAST PEX-AL-PEX multilayer pipe has been exporting to more than 15 countries & areas in worldwide, we have been building a long & good business relationship with our customers. Thanks to the superior quality & best service, all customers are happy on us.

Contact us
Contact us freely for any inquiries on our products by following:
Email: export@sunplastpipe.com

sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp: 0086-15968493053
Skype: polypipe-manufacturer

Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of yellow color pex-al-pex multilayer pipes in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
