PP Compression Coupler

Product Description

PP Compression Coupler

PP compression fittings are a kind of fittings using a mechanical connection method. To ensure a perfect hydraulic seal in the construction of pressurized distribution, PP compression fittings require physical force to develop a seal or produce alignment. Different with conventional heat fusion for HDPE pipes, PP compression fittings provide a new installation method that is quick, easy & simple.

PP compression fittings are widely used in water supply and irrigation. SUNPLAST PP compression fittings are manufactured in compliance with the requirements of standards EN 712/713/715/911; ISO 3501/3503/3458/3459.The fittings can be installed on HDPE pipes which are in compliance with standards ISO 11922; DIN 8072/8074; UNE 53131. The threaded versions are manufactured in compliance with standard ISO 7; DIN 2999.

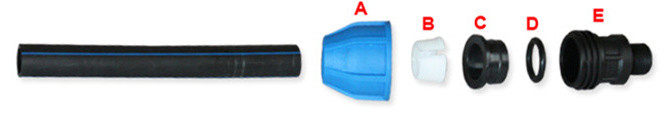

Mark	Part Name	Material	Color
A	Cap	High quality polypropylene black co-polymer (PP-B)	Blue
B	Clinching Ring	POM resin	White
C	Blocking Bush	High quality polypropylene black co-polymer (PP-B)	Black
D	"O" Ring Gasket	NBR rubber	Black
E	Body	High quality polypropylene black co-polymer (PP-B)	Black

Product Detail

Product name	PP compression equal coupler / coupling
Specification available	DN20-110mm
Pressure ratings	PN16 bars for 20-63mm, PN10 bars for 75-110mm
Material	Good quality PP-B raw material
Colors available	Blue cap & black body, or as per request
Standards follow to	EN 712/713/715/911; ISO 3501/3503/3458/3459.
Markings	Customer’s logo can be stamped
Samples available	Yes, sample available for small quantity
Packing method	Cartons
MOQ	Negotiable
Production lead time	10-15 days for a 20ft container, 25-30 days for a 40ft container
Warranty time	5 years for normal using
Payment term	T/T or LC at sight
FOB loading port	Ningbo or Shanghai China
Place of origin	Zhejiang, China

Product Specifications

The PP compression equal coupler / coupling can be provided from DN20mm to DN110mm as below:

Product Name	Specification
PP Equal Coupler / Coupling	S20	S63
	S25	S75
	S32	S90
	S40	S110
	S50
