PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating
  • PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor HeatingPERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating
  • PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor HeatingPERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating
  • PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor HeatingPERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating
  • PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor HeatingPERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating
  • PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor HeatingPERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating

PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating

PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating, available size: 16mm, 18mm, 20mm, 25mm/26mm & 32mm. Suitable for hot water plumbing & underfloor heating system.Good quality with 15 years' warranty time, the most competitive wholesale price & prompt delivery available. Contact us for more details of PERT-AL-PERT pipe.

Model:SP-2003

Send Inquiry    PDF DownLoad

Product Description

PERT-AL-PERT Multilayer Pipe For Water Plumbing Underfloor Heating16mm PERT-AL-PERT Pipe

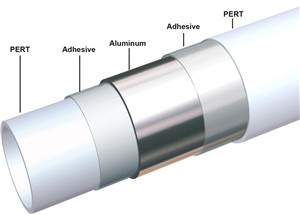

SUNPLAST PERT-AL-PERT multilayer pipe is a kind of five-layers' pipe that combines the advantages of a metal and plastic pipe and eliminates the disadvantages of both materials at the same time.Both inner and layer are made by PERT material, which made PERT-AL-PERT multilayer pipe can be used at 95℃ hot water, the aluminum core in middle layer is absolutely diffusion tight, which can reliably prevents oxygen/gases from permeating into the pipe. The PERT-AL-PERT multilayer pipe can compensate and reduce snap-back forces and heat-expansion with changes of temperature.


SUNPLAST PERT-AL-PERT multilayer pipe is mainly used in:
※ Drinking water supply system
※ Underfloor heating system
※ Radiator heating system
※ compressed air

Product name

PERT-AL-PERT multilayer pipe

Sizes available

12×1.5mm, 16×2.0mm, 20×2.0mm, 25×2.5mm, 26×3.0mm, 32×3.0mm

Max. pressure rating

PN10 bars  (PN12.5 bars for laser weld pipe)

Max. Working temperature

95℃

Material used

Inner & outer layer are PERT, Middle layer is Aluminum core

Colors available

Regular color is white, red/yellow or other colors are available

Standards follow to

ASTM F 1281, EN ISO21003, DIN8077/8078

Markings on the pipe

Customer’s logo can be stamped

Samples available

Free sample available if small quantity.

Packing method

Be packed in coils with 50m/100m/200m/500m length. Each coil in cartons

MOQ

Negotiable

Production lead time

About 7-10 days for a 20ft container, 15-20 days for a 40ft container

Warranty time

15 years for normal using

Payment term

T/T or LC at sight

FOB loading port

Ningbo or Shanghai China

Place of origin

Zhejiang, China


Product Specifications

The PERT-AL-PERT multilayer pipe for gas can be provided from 12mm to 32mm, as below:

Specification

Outer Dia.

Inner Dia.

Wall Thick

Alu. Thick

Packing Legth

(mm)

(inch)

(mm)

(mm)

(mm)

(mm)

(m/coil)

12×1.5

3/8"

12

9

1.5

0.20

50/100/200/300/500

16×2.0

1/2"

16

12

2.0

0.20

50/100/200

20×2.0

3/8"

20

16

2.0

0.25

50/100/200

25×2.5

3/4"

25

20

2.5

0.25

50/100

26×3.0

3/4"

26

20

3.0

0.30

50/100

32×3.0

1"

32

26

3.0

0.30

50/100


Fittings & Installation ToolsPEX-AL-PEX Pipe Fittings

To support the connection of PERT-AL-PERT gas pipe, SUNPLAST is available to provide complete range of brass fittings & installation tools:

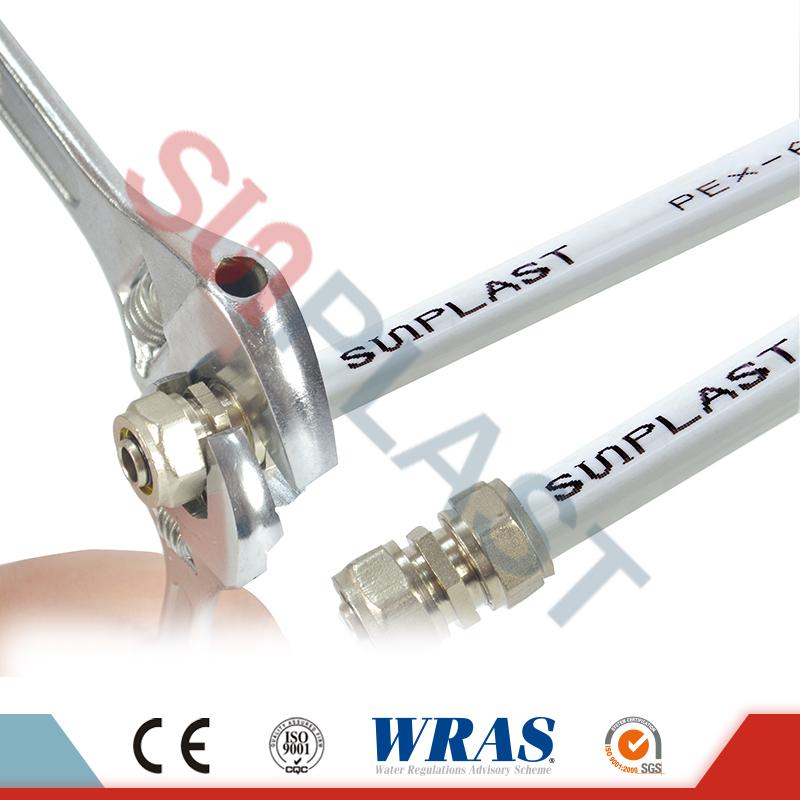

※ 16-32mm brass compression fittings
※ 16-32mm brass press fittings

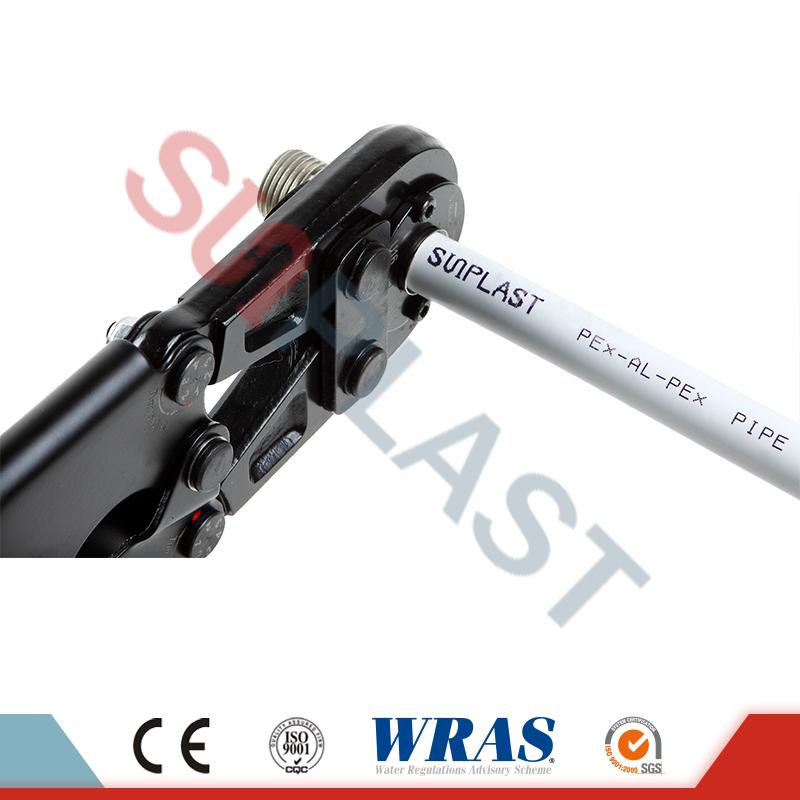

※ Installation tools, such as press tool, cutter, reamer, bending spring., etc


Shiment
SUNPLAST multilayer pipe has been exporting to more than 15 countries & areas in worldwide, we have been building a long & good business relationship with our customers. Thanks to the superior quality & best service, all customers are happy on us.







Contact us
Contact us freely for any inquiries on our products by following:
Email:
export@sunplastpipe.com

          sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp: 0086-15968493053
Skype: polypipe-manufacturer


Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of PERT-AL-PERT Multilayer Pipe For Water Plumbing & Underfloor Heating in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
