Wholesale Electric PPR Pipe Socket Fusion Welding Machine 20/32

2018-11-15



Product Detail

Basic Info

  • Product Type:PPR Pipe

  • Certification:CE

  • Customized:Customized

  • Condition:New

  • Voltage:220V/110V

  • Power:800W/1500W

  • Working Temprature:280degree

  • Box Size:32X15X8

  • Cutting Pipe Size:Dn20,25,32

  • Transport Package:10PCS/CTN

  • Origin:Zhuji, China

  • HS Code:8515800090

Product Description

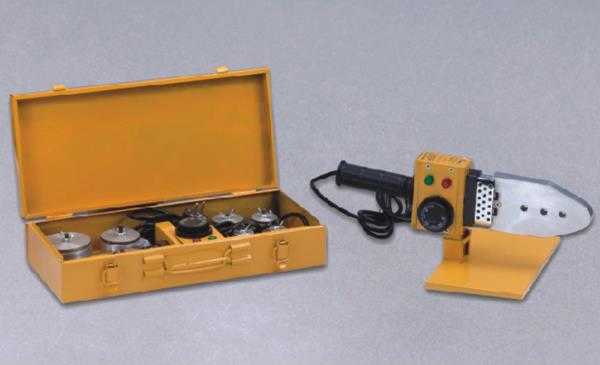

Ppr welding machine

Instruction for use
1.Apply die head
Place the welding machine on the stander, chose die head according to pipe's diameter, and fix it on the machine.In regular, the small end is at the front, the bigger end at the back.
2.Power on
Power on (make sure the power should be with leakage current protector) , the green light and the red light on, wait till the red light off and keep greenlight on, which indicates the machine enter into auto temperature control mode and the machine can be used.
Note:During the auto temperature control mode, the red and the green light will be on and off alternatively, this indicates that the machine is under control and it will not affect operating.
3.Fusion pipes
Using cutter to cut pipe vertically, push the pipe and fitting into die head without any rotation.Take them off immediately when heating time reached (see the table below) and insert.

Size Heating time Insert time Cooling time
20 5s 4s 2s
25 7s 4s 2s
32 8s 6s 4s
40 12s 6s 4s
50 18s 6s 4s
63 24s 8s 6s
