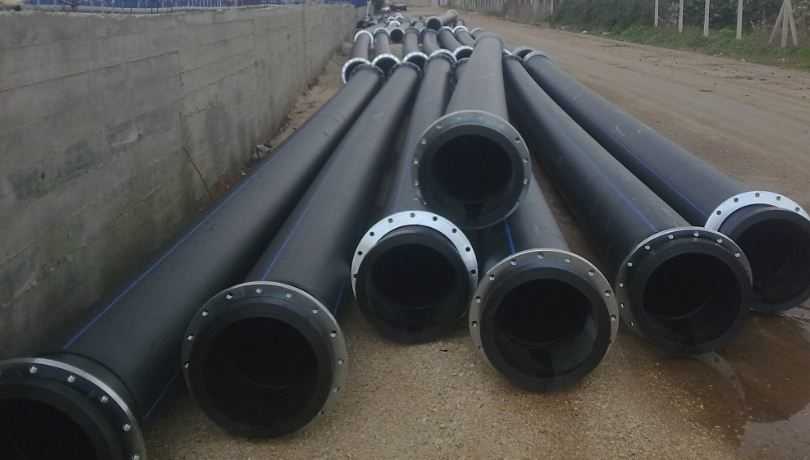

HDPE Dredging Pipe/HDPE Dreger Pipe/Dredge Pipe/UHMWPE Pipe

2018-11-14

Product Detail

Basic Info

  • Standard:GB

  • Diameter: dn20-1000mm

  • Medium:Fluids With Solid Particle

  • Cross-Section Shape:Round

  • Connection Type: Flange

  • Trademark: SUNPLAST

  • Specification: ISO4427

  • Origin:China

  • HS Code:3917210000

Product Description
HDPE dredging pipe, dredged pipe, sand dredger pipe, shore pipe, sand dredging pipe, HDPE pipe, dredge pipe, sand dredging ship pipeline, mud dredged discharge pipe, mud drag pipe, river dredged pipe, dredge boat HDPE pipe, cutter suction dredger transport pipe. Hopper dredge pipe

Performances of HDPE mine pipe
1. Long service life under nominal temperature pressure condition, used for more than in safety.
2. Excellent resist corrosionexcept resist chemical of erosion, no electrochemical corrosion.
4. Excellent anti-wear properties when deliver mine sand mud, anti abrasion
5. Good health performance not added heavy metal salt stabilizer non-toxic, no dirt
6. Good resistance to impact good toughness, good impact resistance,
7. Reliable connection performance connection strength higher,
8. Due to soil moving or load the joint not be disconnected. Quick flange connected easily,
9. Good construction performance light, welding,
10. Construction is convenient, the engineering cost is low.


HDPE Dredge Pipe Dimension:


SDR13.6-PN12.5 bar

(O.D.×W.T.)

SDR17-PN10 bar

(O.D.×W.T.)

SDR21-PN8 bar

(O.D.×W.T.)

SDR26-PN6 bar

(O.D.×W.T.)
20×2.3




25×2.3



32×2.9



40×3.7



50×4.6 50×3.7


63×5.8 63×4.7


75×6.8 75×5.6 75×4.41

90×8.2 90×6.7 90×5.4 90×4.3
110×10.0 110×8.1 110×6.6 110×5.3 110×4.2
125×11.4 125×9.2 125×7.4 125×6.0 125×4.8
140×12.7 140×10.3 140×8.3 140×6.7 140×5.4
160×14.6 160×11.8 160×9.5 160×7.7 160×6.2
180×16.4 180×13.3 180×10.7 180×8.6 180×6.9
200×18.2 200×14.7 200×11.9 200×9.6 200×7.7
225×20.5 225×16.6 225×13.4 225×10.8 225×8.6
250×22.7 250×18.4 250×14.8 250×11.9 250×9.6
280×25.4 280×20.6 280×16.6 280×13.4 280×10.7
315×28.6 315×23.2 315×18.7 315×15.0 315×12.1
355×32.2 355×26.1 355×21.1 355×16.9 355×13.6
400×36.4 400×29.4 400×23.7 400×19.1 400×15.3
450×40.9 450×33.1 450×26.7 450×21.5 450×17.2
500×45.4 500×36.8 500×29.7 500×23.9 500×19.1
560×50.8 560×41.2 560×33.2 560×26.7 560×21.4
630×57.2 630×46.3 630×37.4 630×30.0 630×24.1


710×42.1
710×33.9
710×27.2


800×47.4
800×38.1
800×30.6


900×53.3
900×42.9
900×34.4


1000×5.3 1000×47.7 1000×38.2

Besides HDPE dredge pipes, Sunplast can also provide dredging rubber hoses & dredging flaoters.


Contact us:

Contact us freely for any inquiries on our products by following:
Email: export@sunplastpipe.com

           sunplastpipe@gmail.com
Telephone: 0086-574-87226883
Fax: 0086-574-87467583
Mob: 0086-15968493053

24 hours on line contact:
whatsApp: 0086-15968493053

Skype: polypipe-manufacturer

Sunplast, through over 15 years' development, is now known as one of the leading manufacturers and suppliers of hdpe dredge pipe in China. Our factory has introduced many advanced technologies and equipments into it. Please be free to buy the quality and low price products made in China from us.
