SPA250-4M Manual Butt Fusion Welding Machine,available welding sizes from dn90-250mm, high quality warranted with 1 years, durable service time, competitive wholesale prices, stock available & prompt delivery available. Contact us for more details!

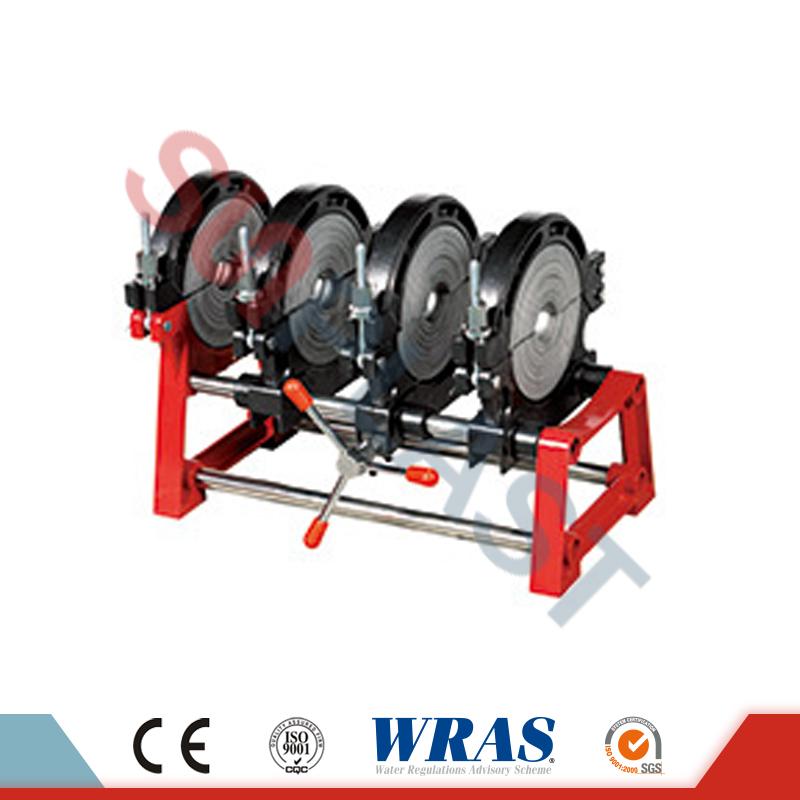

SPA250-4M Manual Butt Fusion Welding Machine For HDPE Pipe
Butt fusion welding is the most popular welding method for HDPE piping system, and butt fusion welding machine is an industrial machine which is extensively demanded for welding purposes.
The SPA250-4M manual butt fusion welding machine are made of three parts, including: planing tools, heating plate, basic frame. The structure
Features
1. Applied to connect PE, PP &. PVDF pipe and pipe fitting on construction site, and in workshop.
1. Consist of Basic frame, trimmer, Heater, and support of heater & trimmer
2. Removable PTFE coated heating plate with separate temperature control system.

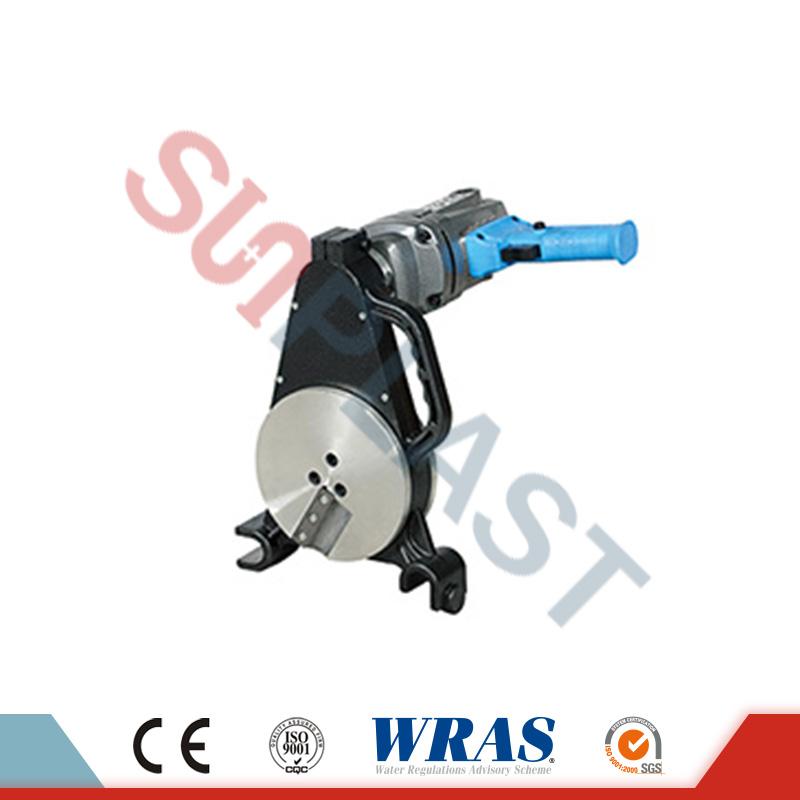

3. Electric Trimmer with reversible double cutting edge blades.
4. Be made of Aluminum material, easy to carry and transport.
5. Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
7. International warranty for 12 months.
Technical Parameter
Welding Range |
90-250 (mm) |
Temperature variable |
± 3℃ |
Power supply |
220V, 50-60HZ |
Power of heating plate |
2KW / 220V |
Max tolerance of welding |
≤0.2mm |
Power of planing tool |
1KW / 220V |
Power of hydraulic station |
-- |
Total Power |
3KW / 220V |
Heating plate Max. Temp. |
300℃ |
Overall weight (kg) |
78KGS |
Clamp Size: 90,110,125,140,160,180,200,225,250mm |
|||
Packing size: one plywood cases 74*54*57(cm) ; Total 0.23CBM |
