75-110mm Socket Fusion Welding Machine For PPR Pipe HDPE Pipe, available 75-110mm, easy operated,high quality warranted with 1 years, durable service time,competitive wholesale prices. Contact us for more details!!!

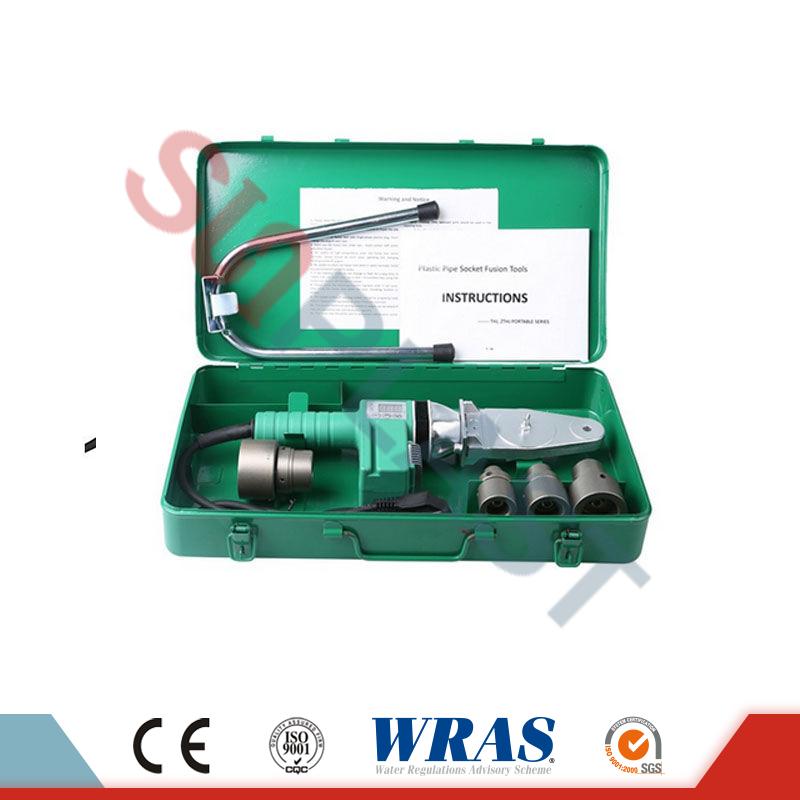

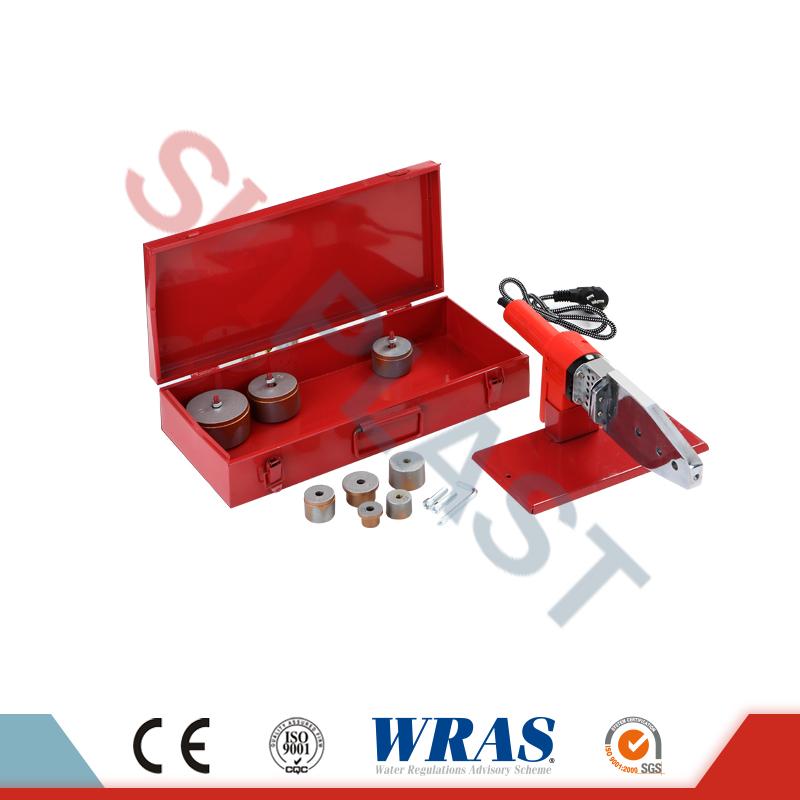

75-110mm Socket Fusion Welding Machine For PPR Pipe HDPE Pipe
Socket fusion is a major welding method for small diameter pipes. Socket fusion welding machine is mainly used for welding pipes made from HDPE, PPR. Socket fusion welding involves the use of a fitting. The process operation is generally manual. The welding cycle consists of a heating phase and a cooling phase. In socket fusion welding, a socket mounted on a hot plate is used to heat the outside surface of the pipe being welded. On the opposite side of the hot plate, a spigot is used to heat the inside surface of the injection moulded fitting.
SUNPLAST socket fusion welding machine are practical, easy to handle and safe, the welding machine is available with an adjustable electronic thermoregulator (TE), or with a fixed electronic thermostat (TFE).
This new TFE control system features a new self-diagnostic device, provided with an alarm, which would alert the operator in case of anomaly; at the same time, the heating element would switch off automatically. Thanks to an algorithm PID micro-controller, combined with a platinum sensor, the temperature control system can react faster to the external temperature fluctuations, and guarantee higher reliability and longer durability.
Product Detail
Product name
75-110mm Socket fusion welding machine for HDPE pipe & PPR pipe
Model
75-110mm
Welding range
75mm, 90mm, 110mm
Voltage
220V,50Hz
Input Power
1200W / 2000W
Working Temperature
300℃±10%
Net Weight:
7.5kgs / set
Packing
Set / CTN
3set / CTN
Weight / CTN
23kgs / CTN
Size / CTN
45*32*11cm
Samples available
Free sample available if small quantity need.
Packing method
Cartons
MOQ
Negotiable
Production lead time
Depending on the order quantity.
Warranty time
1 years for normal using
Payment term
T/T or LC at sight
FOB loading port
Ningbo or Shanghai China
Place of origin
Zhejiang, China
Normally about 20 days for a 20ft container
